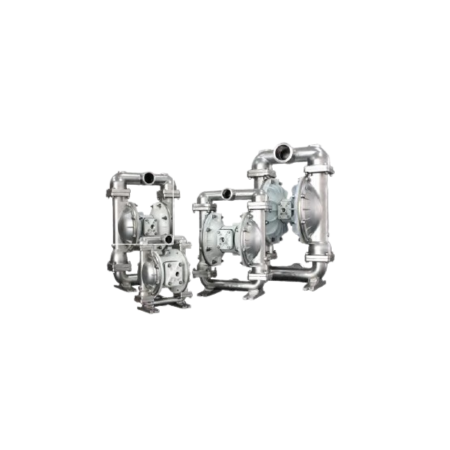

Air Operated Diaphragm Pumps

Air Operated Diaphragm Pumps (AODD) are ideal for handling a wide range of viscous, abrasive, and shear-sensitive liquids with minimal maintenance. Powered by compressed air, AODD pumps offer self-priming capabilities and the flexibility to operate in hazardous environments.

  • Air Operated Diaphragm Pumps (AODD) are versatile, self-priming, positive displacement pumps powered by compressed air. Their simple, robust design features two flexible diaphragms that move back and forth to draw in and expel fluid, making them ideal for handling challenging fluids, including slurries, abrasives, and corrosive chemicals. AODD pumps can run dry, handle solids, and are suitable for hazardous environments, offering safe and reliable operation without the need for electricity.


    KEY BENEFITS OF AODD PUMPS INCLUDE:

    • Self-priming and dry-run capable

    • Excellent chemical and abrasion resistance

    • Handles viscous, shear-sensitive, and solid-laden fluids

    • Explosion-proof by design (ATEX options available)

    • Easy to install, operate, and maintain

    • Portable and adaptable to remote or mobile systems


    OUR PARTNER BRANDS FOR AODD PUMPS:

    Ingersoll Rand ARO, Graco, Wilden, Sandpiper, Versamatic


    Contact Industrial Pumps Australia today for expert advice and competitive pricing on the best Air Operated Diaphragm Pump for your application.

  • Air Operated Diaphragm Pumps are used across a wide range of industries due to their flexibility and ability to handle tough applications.


    COMMON USES INCLUDE:

    • Chemical processing - Transfer of aggressive acids, caustics, solvents, and slurries.

    • Mining and construction - Dewatering pits, transferring sludge, slurry, and abrasive tailings.

    • Food and beverage - Sanitary models available for transferring syrups, sauces, and cleaning agents.

    • Paints, coatings, and adhesives - Handles high-viscosity fluids, latex, and resins without clogging.

    • Pharmaceutical and cosmetics - Transfers gels, creams, and alcohol-based fluids with low shear.

    • Oil and gas / Marine - Transfers fuel, lubricants, wastewater, and bilge liquids in hazardous environments.

    • General plant maintenance - Ideal for pumping out sumps, containers, and spills in various industrial settings.

  • We offer a wide selection of AODD pumps to suit a broad range of chemical, sanitary, and industrial applications.


    AVAILABLE TYPES:

    • Metallic Pumps – Aluminum, cast iron, or stainless steel for rugged industrial environments.

    • Non-metallic Pumps – Polypropylene, PVDF, or PTFE for superior chemical resistance.

    • Sanitary/Hygienic Pumps – Polished stainless steel and FDA-compliant elastomers for clean applications.

    • ATEX-Certified Pumps – Designed for use in explosive or flammable atmospheres.

    • High-pressure models – For filter press or spray systems.

    • Submersible versions – For sump or remote liquid transfer in harsh conditions.


    SPECIFICATIONS:

    • Flow rates: up to 1,000 L/min (or more in special models)

    • Suction lift: up to 7.6 m (dry), 9.5 m (wet)

    • Max solid size: up to 12.7 mm (depending on model)

    • Operating pressure: up to 8.6 bar (125 psi)

    • Temperature range: -20°C to 120°C (varies by material)

    • Connection sizes: ¼\" to 3\" NPT/BSP or tri-clamp

    • Diaphragm materials: Santoprene, PTFE, Viton, Buna-N, EPDM, Hytrel

    Not sure which AODD pump is best for your fluid or process?

    Reach out to our team today for expert sizing, chemical compatibility checks, and technical advice.
